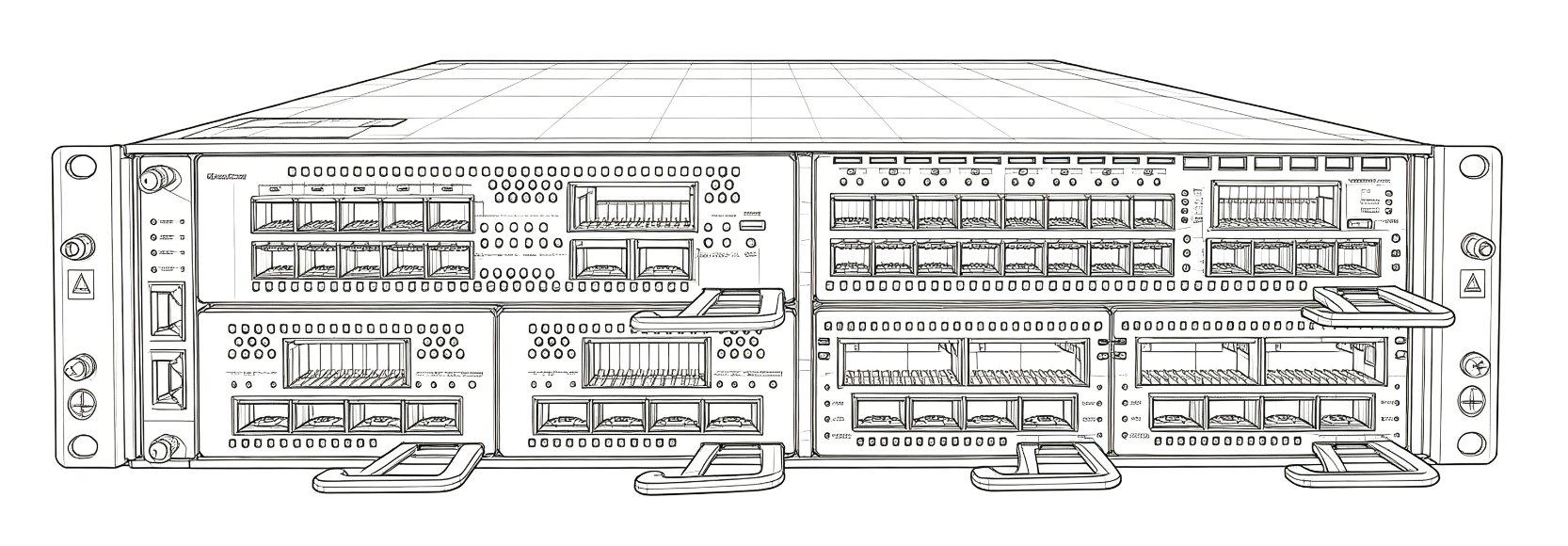

400G coherent transponder, 4x QSFP-DD client + 4x QSFP-DD DCO line, OpenROADM/OpenZR+ programmable, DP-16QAM / PCS-16QAM.
Capacity: 4x400G bidirectional; Tunable wavelength (DWDM): 1529.16nm - 1567.14nm
Modulation: DP-16QAM, PCS-16QAM; Line-side protocol: OpenROADM / OpenZR+ / SCFEC
CD tolerance: +/-40000ps/nm @100G; OSNR tolerance: <23dB @400G PCS-16QAM, <24dB @400G DP-16QAM
Line side: supports 1-4 channels of 200G/400G; Client side: 4x400G to 4x400G coherent forwarding, flexible service access (400GE, 100G) with breakout.
End-to-end DCI solution based on coherent optics, WDM, OTN and optical line systems, supporting 100G/400G/800G high-speed data center interconnect.
Learn More →
Expand existing fiber capacity 8-96x via CWDM/DWDM multiplexing without laying new fiber — protecting prior investment.
Learn More →
