Applications
The 200G coherent MXP unit is ITU-channel programmable, flexibly tuning modulation and wavelength per traffic and reach, configurable as 100G DP-QPSK or 200G DP-16QAM. 100G DP-QPSK reach up to 2500km and 200G DP-16QAM up to 800km.
OTS-200G-2MXP-CFP2
OTSLink
P/N: OTS-200G-2MXP-CFP2
SKU: OTS-200G-2MXP-CFP2
Unit: pcs
200G coherent MXP: 4x QSFP28 client + 2x CFP2 DCO line, up to 2500km @100G DP-QPSK / 800km @200G DP-16QAM.

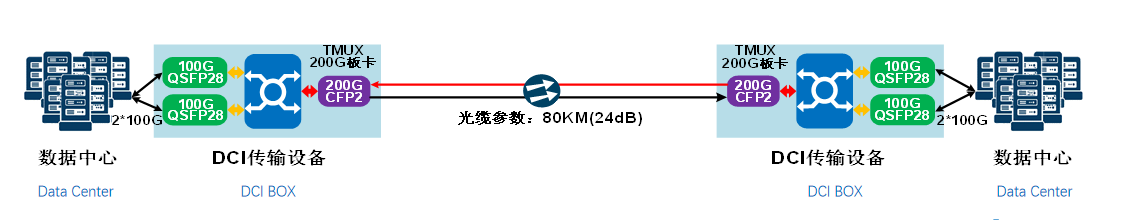

Application Scenario
Key Features
- Client side: 4x pluggable 100G QSFP28 optical modules
- Line side: 2x pluggable 200G CFP2 DCO coherent optical modules
- 4x100G in -> 2x200G out
Specifications
| Tunable wavelength (DWDM) | 1529.16nm - 1567.14nm | |
|---|---|---|
| Capacity | 2x100G bidirectional | |
| Modulation | DP-QPSK@100G; DP-16QAM@200G; DP-8QAM@200G; DP-QPSK@200G | |
| Line-side protocol | OpenROADM / OpenZR+ / SCFEC | |
| CD tolerance | +/-40000ps/nm @100G | |
| OSNR tolerance | <14dB@100G QPSK; <17.5dB@200G DP-8QAM; <19.5dB@200G DP-16QAM; <16dB@200G DP-QPSK | |
| Service access | 100GE, 100GE-KR4, OTU4 | |
| Dimensions | 85.7 (W) x 40.3 (H) x 209.86 (D) mm | |
| Operating temp | -5C ~ 45C | |
| Storage temp | -40C ~ 85C | |
| Relative humidity | 5%~95% non-condensing | |
| Safety / EMC | FCC, UL, CE, TUV, CSA | |
| Power consumption | <45W | |
