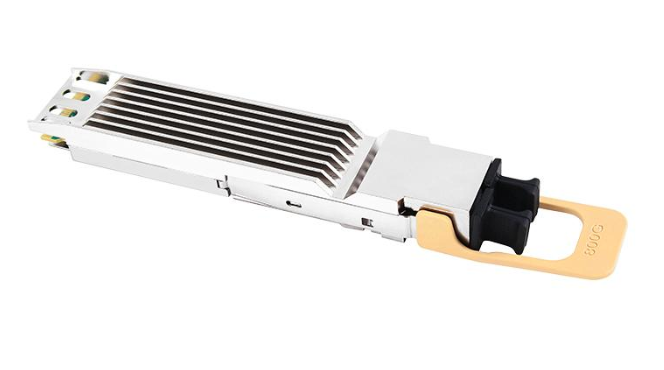

800G OSFP SR8 MM MPO12

Overview

The 800G OSFP SR8 multimode module uses 8×100G PAM4 for 800Gbps full-duplex bandwidth at typically under 15.5W — ideal for power-hungry AI compute clusters. Purpose-built for short-reach high-bandwidth scenarios, it supports OM3/OM4 and flexibly splits into 2×400G SR4 links, with built-in DDM/DOM diagnostics for large-scale DC stability.

Applications

10k-GPU-class interconnect for AI training clusters (NVIDIA DGX/HGX), hyperscale Spine-Leaf short-reach backbone, HPC and distributed storage.
