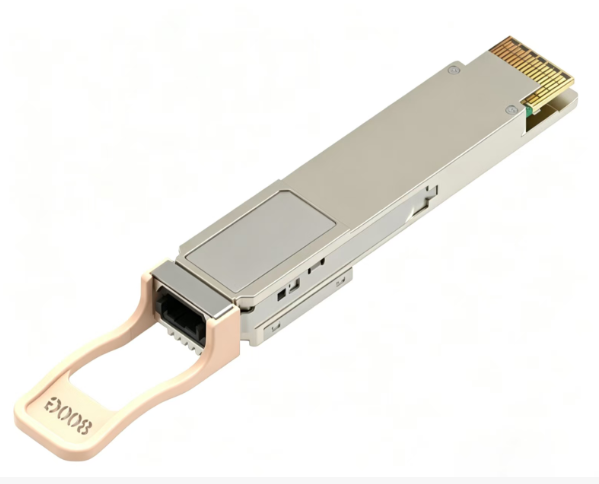

800G OSFP DR8 SM 500m

800G OSFP DR8 SM 500m

2026-07-10 15:17 Views 5 In Stock

OTSLink P/N: OTS-OSFP-DR8-800G SKU: OTS-OSFP-DR8-800G Unit: pcs

800G OSFP DR8 single-mode transceiver, Dual MPO-12, 500m reach, 2×400G breakout, 16W.

Request Quote

Overview

The 800G OSFP DR8 uses an advanced 7nm DSP with PAM4 to deliver stable 500m reach over SMF at power strictly under 16.5W. With 800Gbps full-duplex bandwidth and breakout mode splitting into 2×400G DR4, it fits Spine-Leaf fabrics and cross-room compute scheduling, and is interoperable with NVIDIA Quantum switches supporting both Ethernet and InfiniBand.

Applications

Multi-GPU interconnect for AI compute and HPC, DC Spine-Leaf backbone, 500m cross-building compute scheduling, and 400G-to-800G migration.

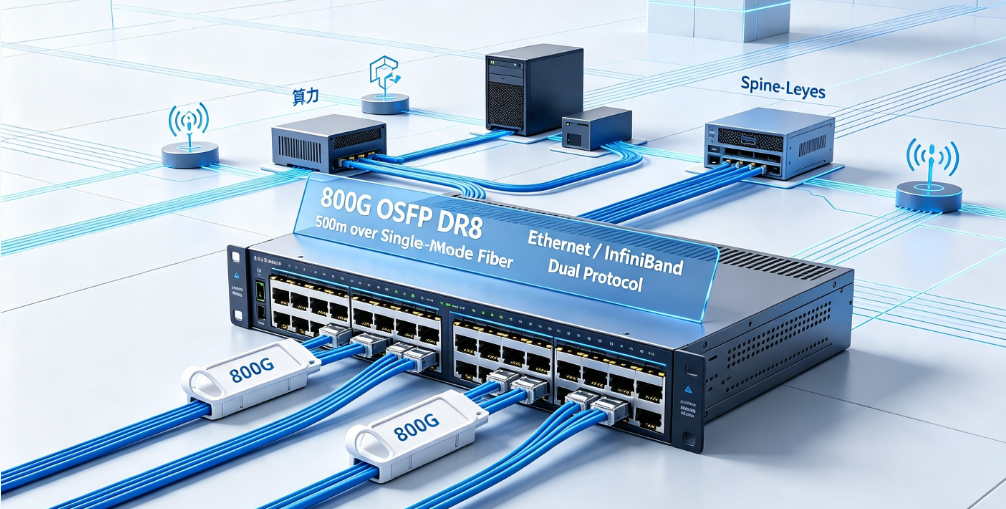

Application Scenario

Application scenario

Key Features

800G full-duplex, 500m SMF reach
Splits into 2×400G DR4 for flexible networking
Dual MPO-12 APC for high-density ports
7nm DSP, 16W low power
Dual-protocol Ethernet and InfiniBand

Compatibility

Validated on mainstream switch and router platforms

NVIDIACiscoArista
