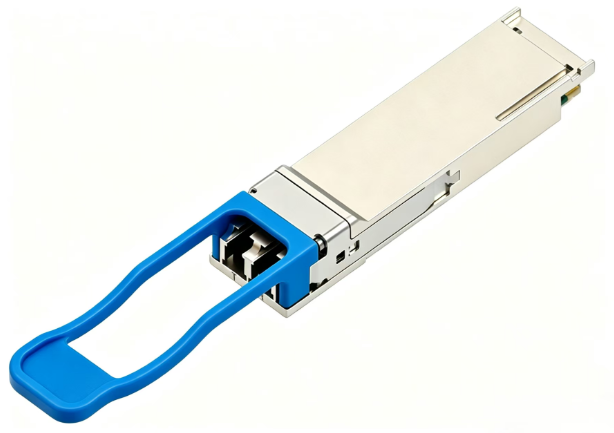

100G QSFP28 LR4 transceiver — 4×25G LAN-WDM, 10km SMF reach, <3.5W, compatible with mainstream switches.

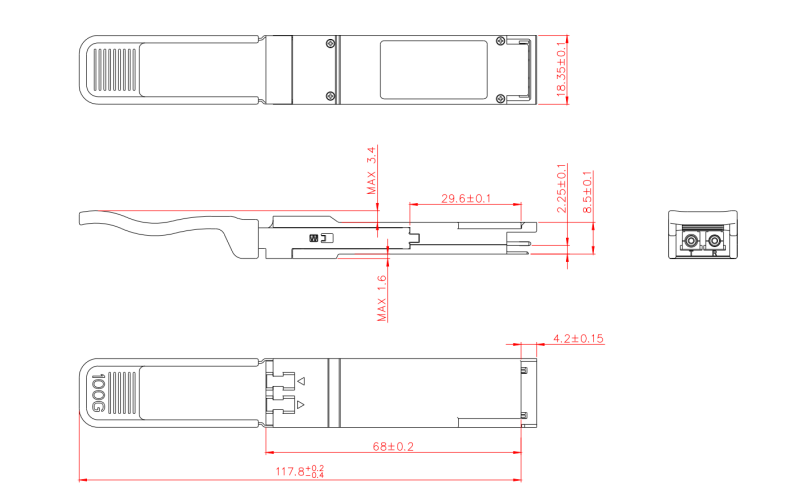

The 100G QSFP28 LR4 uses 4×25G NRZ LAN-WDM to multiplex four wavelengths onto one pair of SMF, delivering stable unrepeated 10km reach in the 1310nm band. At a typical 3.5W in a standard QSFP28 hot-pluggable form factor with duplex LC, it is fully IEEE 802.3ba 100GBASE-LR4 compliant and interoperates with Cisco, Huawei and Juniper platforms.

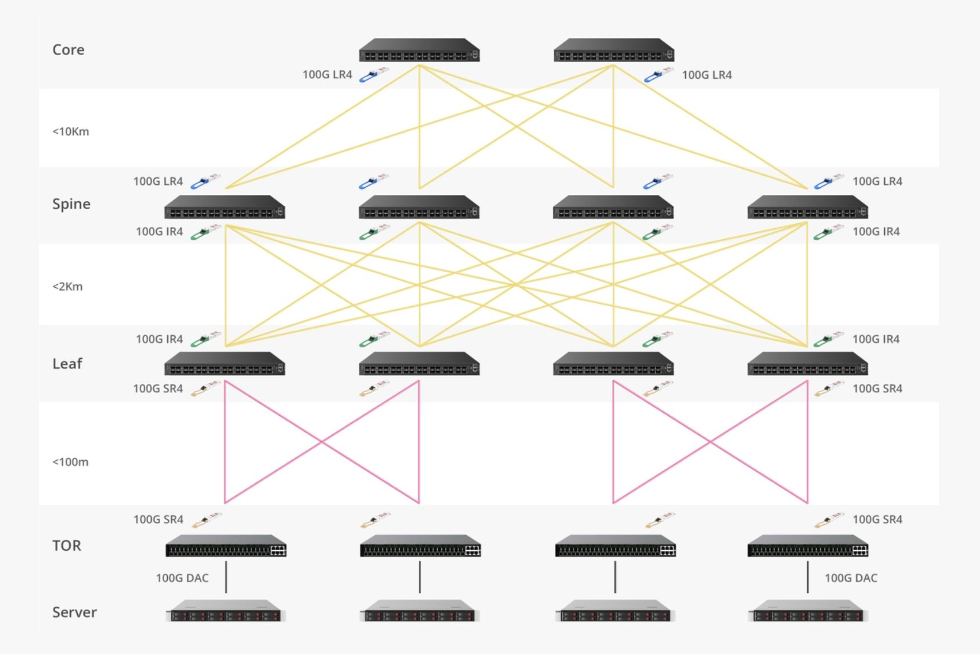

Large-scale DCI backbone links, 5G transport and metro aggregation, and 10G/40G-to-100G upgrades for HPC fabrics.
Validated on mainstream switch and router platforms
End-to-end DCI solution based on coherent optics, WDM, OTN and optical line systems, supporting 100G/400G/800G high-speed data center interconnect.
Learn More →
Expand existing fiber capacity 8-96x via CWDM/DWDM multiplexing without laying new fiber — protecting prior investment.
Learn More →
